Generated On September 12, 2018
Visit our website at: www.kkmfg.com
113Chassis - Frame and Floors - Pg. 1
113-301-00-02 Bracket, Pedal Mounting 27.79
113-350-00-32 Stud Mount 68.65

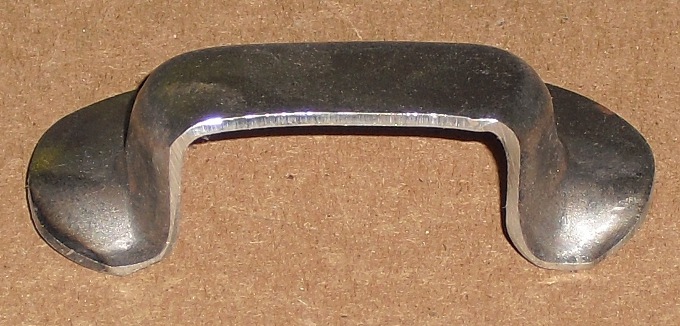

113-492-00-01 Bracket, Exhaust, Weld to Frame (exhaust ring hangs from it) 15.29
113-610-00-14 Crossmember, Rear 127.05
113-610-00-14R Crossmember, Rear, Reproduction 110.00

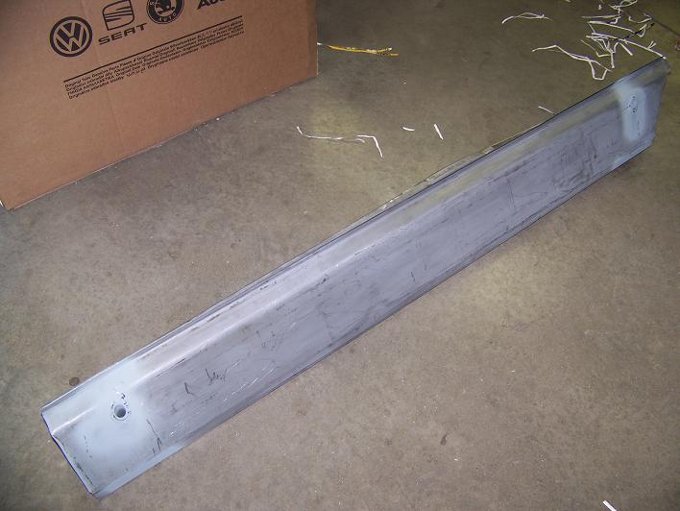

113-610-01-09 Rail, Frame Side, Left 820.00
113-610-01-09R Rail: Reproduction 525.00
113-610-01-10 Patch Panel, Front Wheelhousing, Rear Area. Same Each Side 107.50
113-610-02-09 Rail, Frame Side, Right 820.00
113-610-02-09R Rail: Reproduction 525.00
113-610-03-62 Floor, Trunk, Left 120.00
113-610-03-62R Floor, Trunk, Left: Reproduction 73.00
113-610-04-14 Crossmember, Rear 321.25
113-610-04-14R Crossmember Reproduction 136.00
113-610-07-00 Patch Panel, Left 245.20
113-610-07-01 Patch Panel, Rear Rail End, Left 95.50
113-610-07-10 Rail, Frame, Rear, Left 1036.11
113-610-07-10P Patch Panel, Rear Rail, Left 190.00
113-610-08-00 Patch Panel, Right 245.20
113-610-08-01 Patch Panel, Rear Rail End, Right 95.50
113-610-08-10 Rail Frame, Rear, Right 973.59
113-610-08-10P Patch Panel, Rear Rail, Right 190.00
113-610-08-26 Support, Rail, Right 234.00
113-610-08-26R Rail Reproduction 105.00
113-610-08-62 Right Trunk Floor 300.00
113-610-08-62R Reproduction Right Trunk Floor - Minus Cup Brackets 115.00
113-610-09-16 Support, Trunk Floor and Fuel Tank 525.00
113-610-09-16R Reproduction Trunk Floor and Fuel Tank Support CALL
113-611-00-01 Firewall, Left 62.65

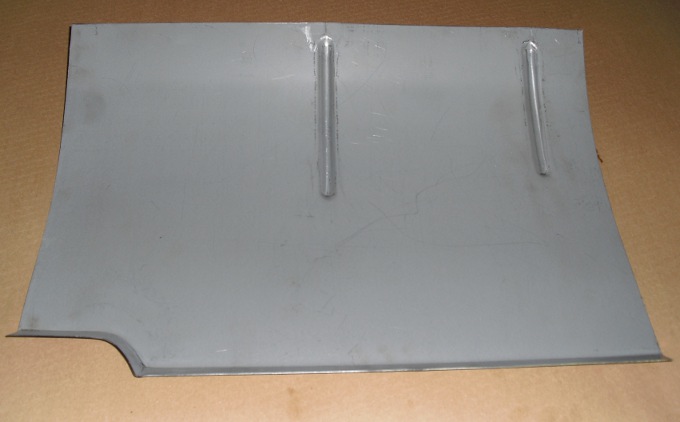

113-611-00-02 Firewall, Right 62.65

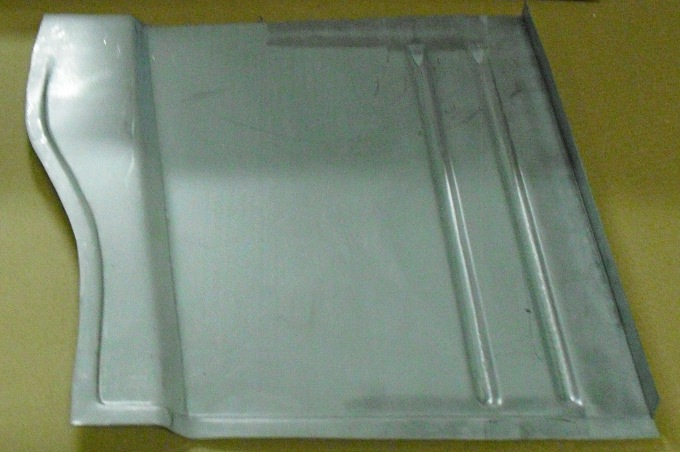

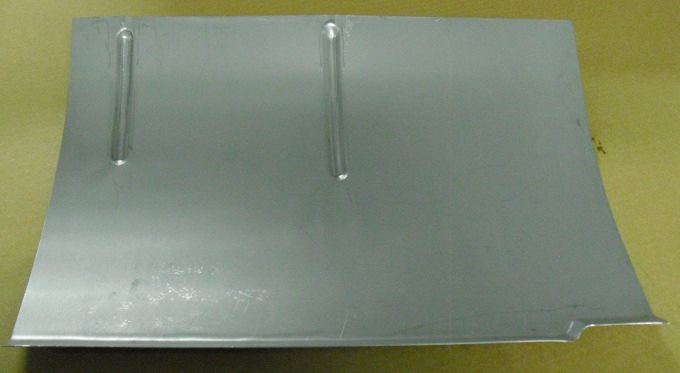

113-611-00-03 Floor, Front, Left 132.54

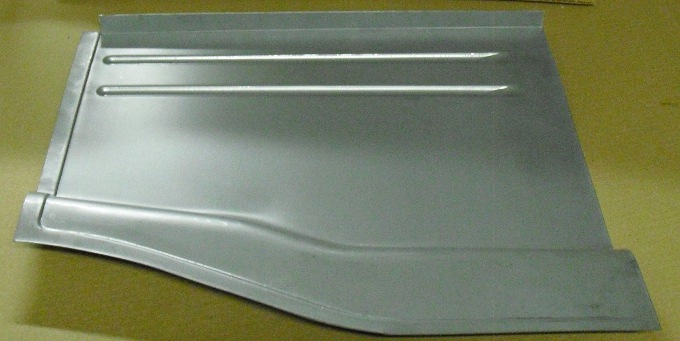

113-611-00-04 Floor, Front, Right 132.54

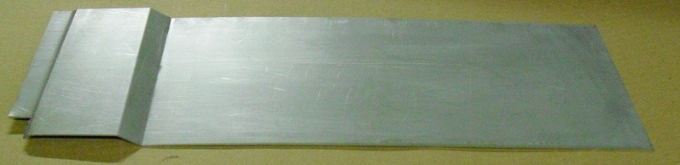

113-611-00-05 Filler Panel, Left 35.81

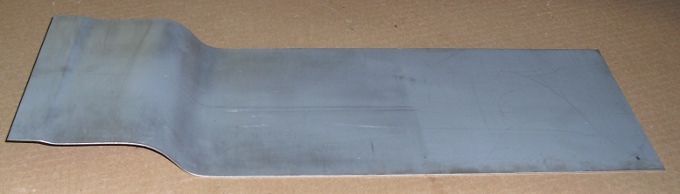

113-611-00-06 Filler Panel, Right 35.81

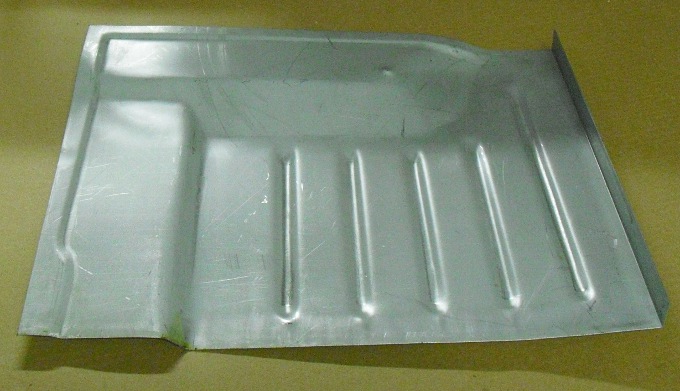

113-611-00-07 Floor, Center 132.54

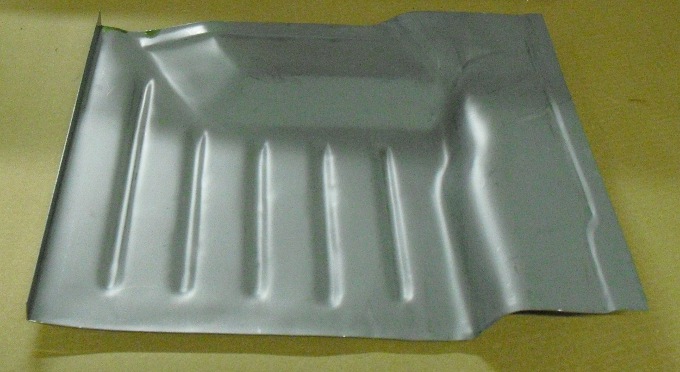

113-611-00-08 Floor, Center 132.54

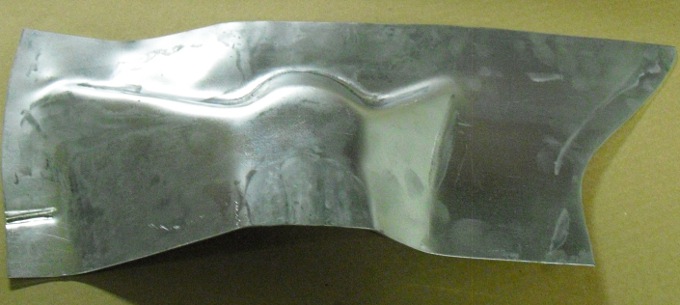

113-611-00-09 Trailing Arm Support, Left 120.50
113-611-00-10 Trailing Arm Support, Right 120.50

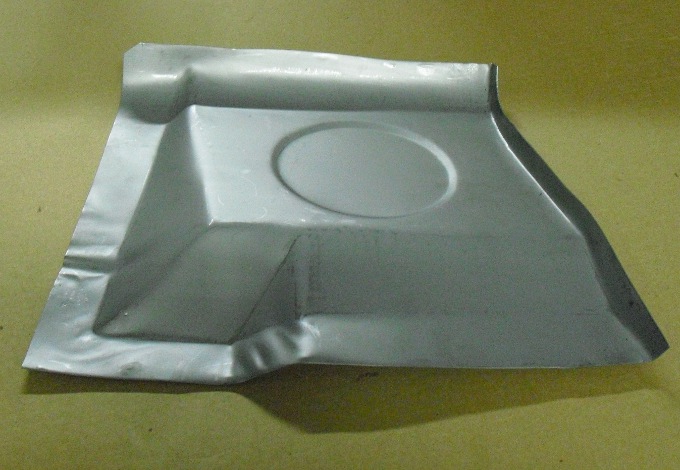

113-611-00-11 Floor, Rear, Left 83.50

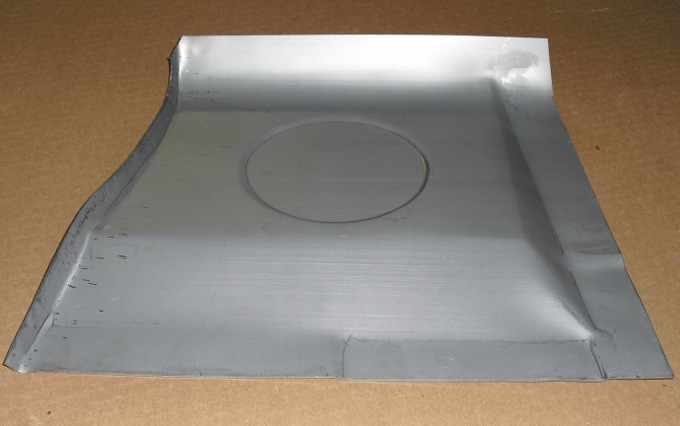

113-611-00-12 Floor, Rear, Right 83.50

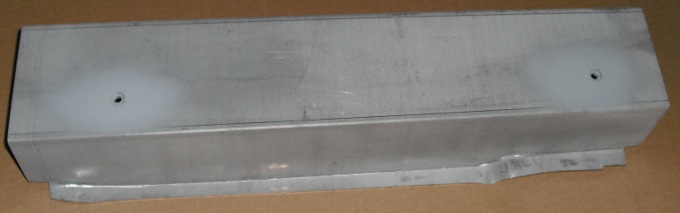

113-611-01-01 Seat Support Crossmember, Left 120.25
113-611-01-02 Seat Support Crossmember, Right 120.25
113-611-01-01R Reproduction Seat Support Crossmember, Left CALL
113-611-01-02R Reproduction Seat Support Crossmember, Right CALL

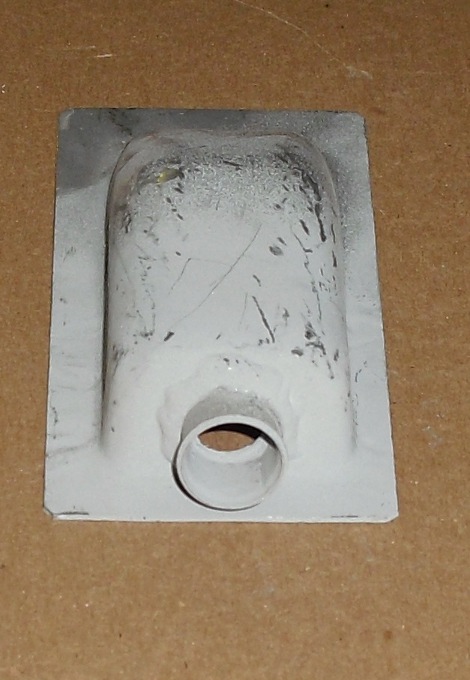

113-611-01-03 Cup, E-Bracket Lever 55.86
113-611-01-39 Support, Rail 43.56
113-611-01-39R Support Reproduction 30.40
113-611-03-20 Cover, Sill For Top of Rail, Left 121.60
113-611-04-20 Cover, Sill Cover For Top of Rail, Right 121.60

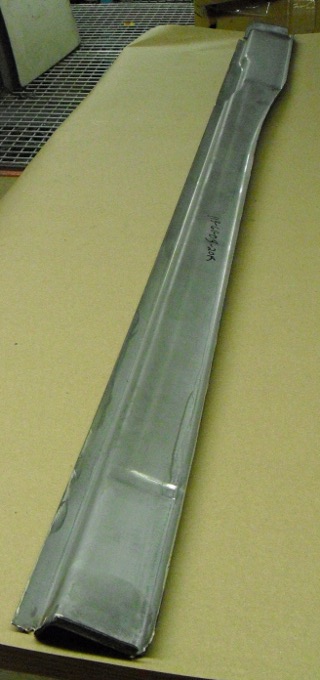

113-611-03-20R Reproduction Cover, Sill For Top of Rail, Left 97.50
113-611-04-20R Reproduction Cover, Sill For Top of Rail, Right 97.50
113-616-02-62 Floor, Trunk 220.50
113-616-02-62R Reproduction Trunk Floor 195.75

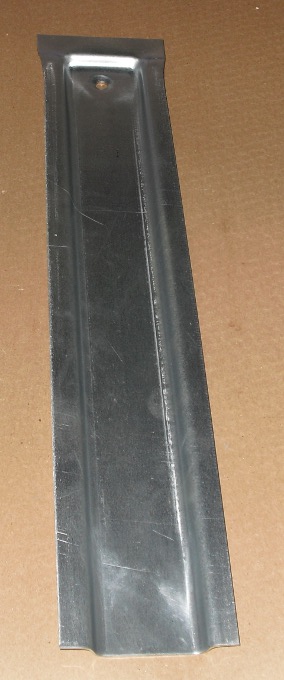

113-626-00-22 Reinforcement, Extends Frame Under Floors 43.00
113-693-02-30 Cover, Filler Neck 65.00
113-883-03-01 Rocker Panels, Left 301.30
113-883-04-01 Rocker Panels, Right 301.30
113-883-03-01R Reproduction Rocker Panels, Left 220.00
113-883-04-01R Reproduction Rocker Panels, Right 220.00
113-899-00-08 Cover, Jack Hole 15.30

113Chassis - Body Panels - Pg. 2
003-989-54-85 Sealer, Between Wheelhousings CALL
110-541-00-35 Battery Tray 21.80

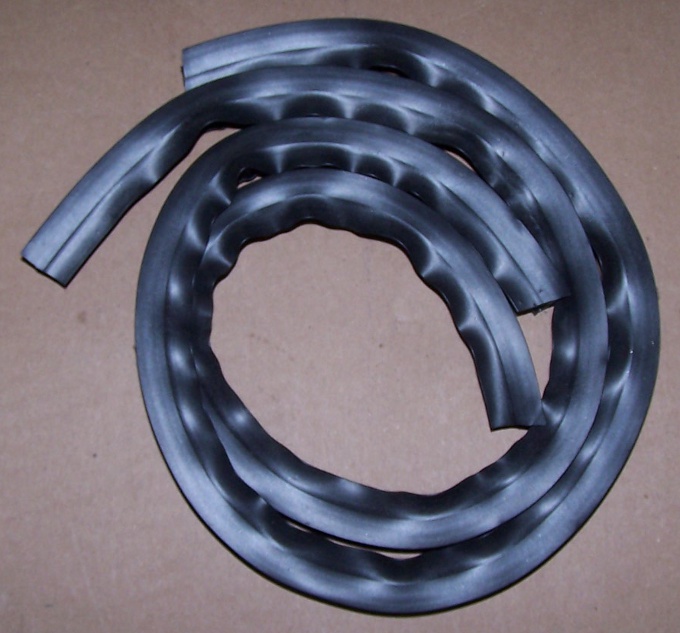

110-884-00-98 Seal, to Splash Shield 8.70
113-540-00-23 Battery Hold Down, Top 56.30
113-626-02-83 Reinforcement Strut, Top of Wheelhouse, Right 205.10
113-884-01-35 Shield, Dirt 71.75

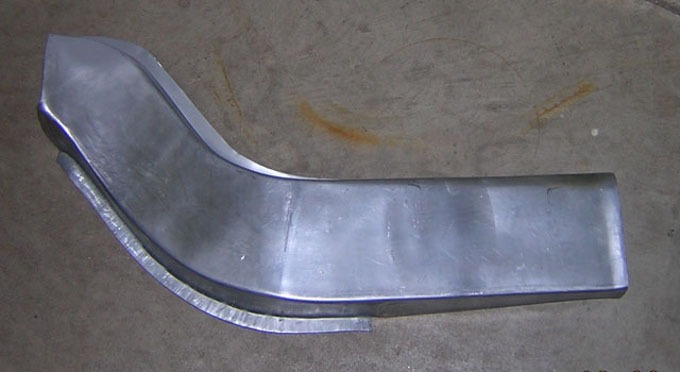

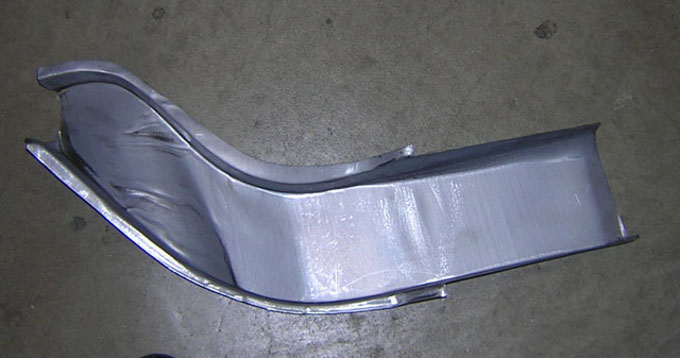

113-610-01-10 Patch Panel, Front Frame Rail 107.50

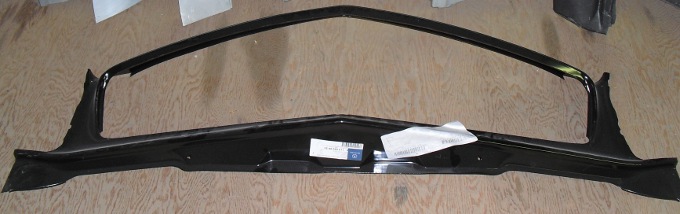

113-620-00-25 Nose Panel 1370.00
113-620-00-58 Frame, Battery 78.70
113-620-00-86 Crossmember, Outer 196.90

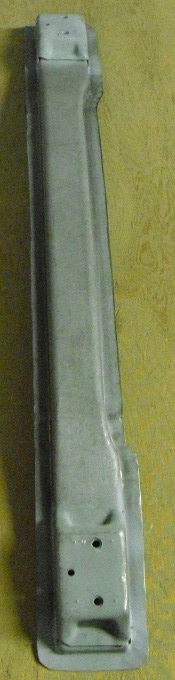

113-620-00-86R Crossmember, Outer - Repro 175.00
113-620-01-13 Pillar, Outer, Left 525.20
113-620-01-27 Bucket, Headlamp, Left 125.85
113-620-01-36 Baffle Plate, Left 444.00
113-620-01-86 Crossmember, Firewall 504.58
113-620-02-13 Pillar, Outer, Right 635.00
113-620-02-27 Bucket, Headlamp, Right 125.85
113-620-02-36 Right Baffle Plate, early 352.11
113-620-06-36 Right Baffle Plate, late CALL
113-620-03-13 Pillar, Inner, Left CALL
113-620-04-13 Pillar, Inner, Right CALL
113-620-09-09 Fender, Front Original, Left 1970.00

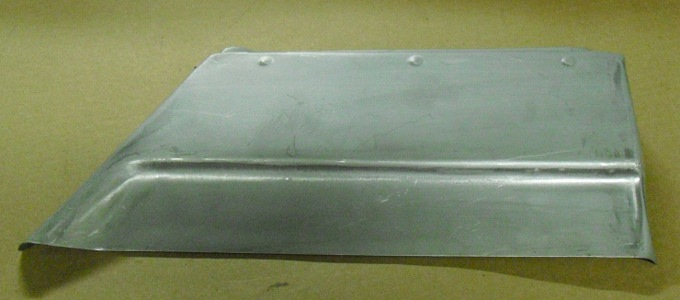

113-620-09-11 Patch Panel, Fender, Rear, Left 95.50
113-620-09-31 Mount, Shock, Left 250.00
113-620-10-09 Fender, Front Original, Right 2090.00
113-620-10-11 Patch Panel, Fender, Rear, Right 95.50
113-620-10-31 Mount, Shock, Right 250.00

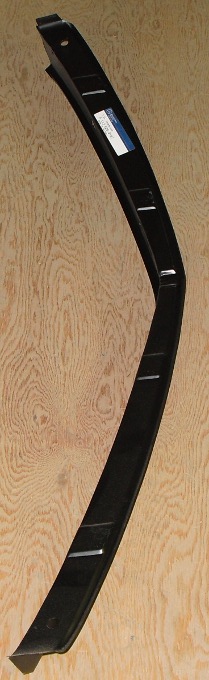

113-626-01-07 Reinforcement Nose Panel, Upper 122.40

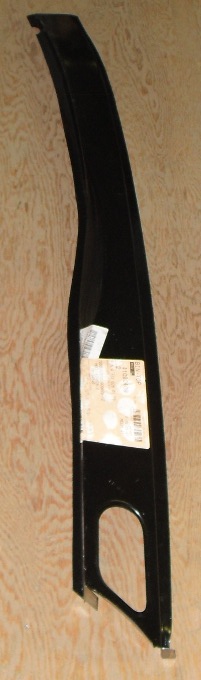

113-626-01-83 Reinforcement Strut, Top of Wheelhouse, Left 205.10

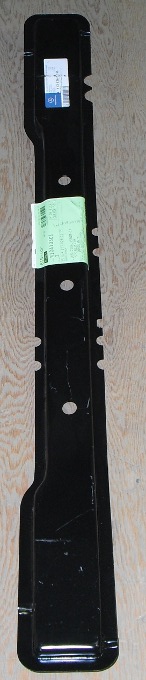

113-626-02-55 Crossmember, Inner 125.85
113-626-06-75 Wheelhouse, Front Fender Right 560.85
113-626-07-75 Wheelhouse, Front Fender Left 444.70
113-628-01-28 Connection Plate, Left 261.94
113-628-02-28 Connection Plate, Right 261.94
113-640-01-10 Pillar, Rear, Left 400.00
113-640-02-10 Pillar, Rear, Right 400.00
113-640-03-71 Tail Panel, Inner 413.85
113-640-05-09 Fender, Rear, Original, Left 998.00
113-640-05-70 Wheelhouse, Inner, Left 400.00
113-640-06-09 Fender, Rear, Original, Right 998.00
113-640-09-70 Wheelhouse, Outer, Left 245.60
113-640-10-70 Wheelhouse, Outer, Right 245.60
113-641-11 Quarter Panel Patch Full Length, Left 296.40
113-641-12 Quarter Panel Patch Full Length, Right 261.90
113-641-13 Patch Panel, Rear 1/4 Lower Rear, Left 175.69
113-641-14 Patch Panel, Rear 1/4 Lower Rear, Right 175.69
113-641-15 Patch Panel, Behind the wheel, Left 105.25

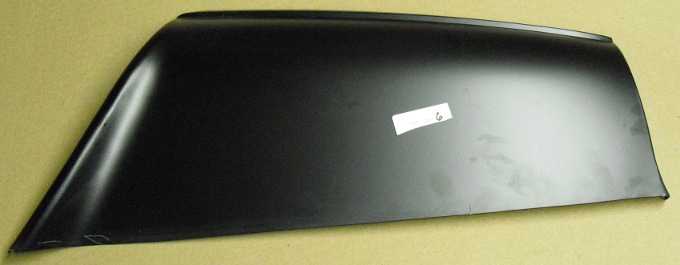

113-641-16 Patch Panel, Behind the wheel, Right 105.25
113-646-04-76 Wheelhouse, Inner, Right 494.00
113-647-00-00 Patch, Lower Tail Panel CALL

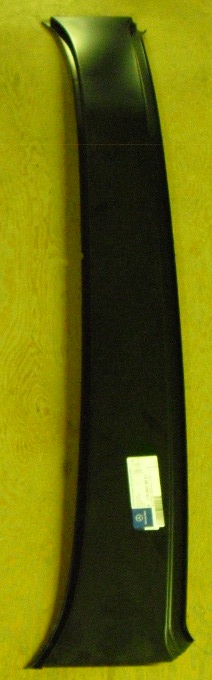

113-647-00-01 Cowl Panel, Rear 665.00
113-647-01-01 Tail Panel, Outer 845.65
113-647-01-00 Tail Patch Panel, Outer 222.35
113-750-04-75 Deck Lid, New 3560.00
113-880-00-56 Hood 5780.00
113-880-00-56U Hood: Used 882.00

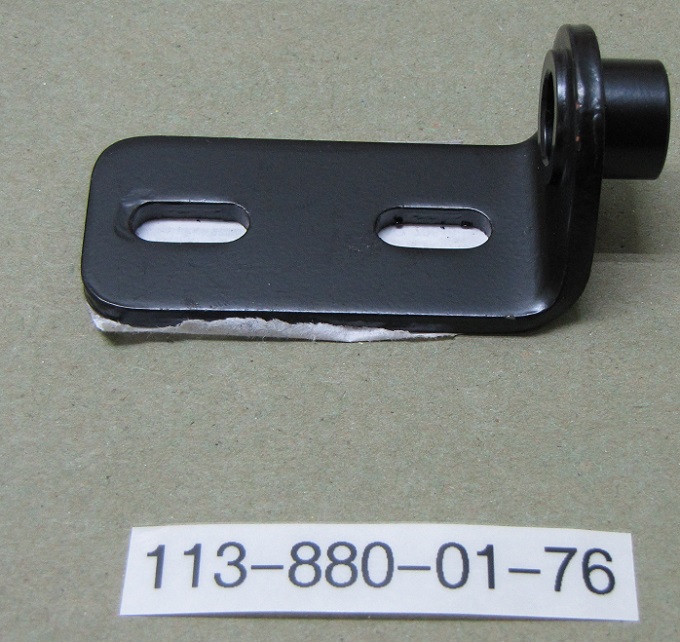

113-880-01-76 Hinge, Hood Half, Left 45.50

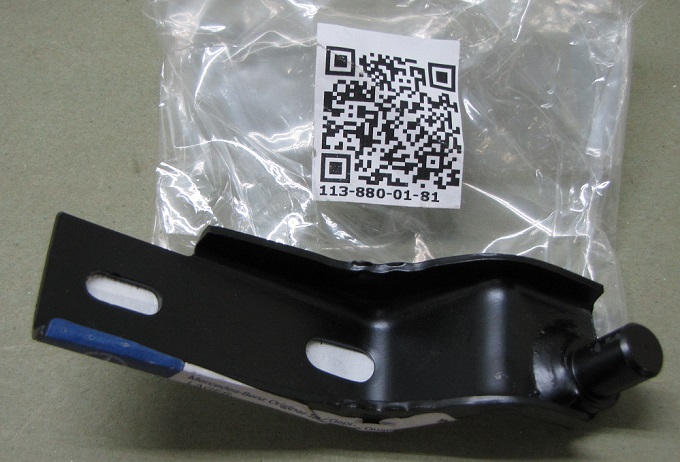

113-880-01-81 Hinge, Body Half, Left 60.00
113-880-02-76 Hinge, Hood Half, Right 45.50
113-880-02-81 Hinge, Body Half, Right 60.00

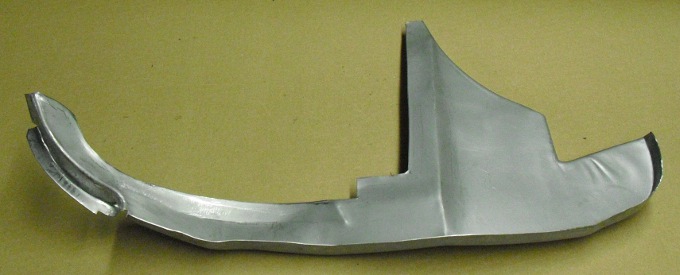

113-884-02-35 Shield, Dirt 71.75
113-887-01-63 Hood Rod 49.00

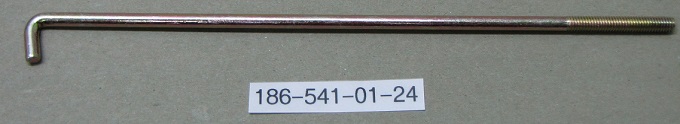

186-541-01-24 Rod, Battery Hold Down 10.40

113Chassis - Fuel and Exhaust - Pg. 3

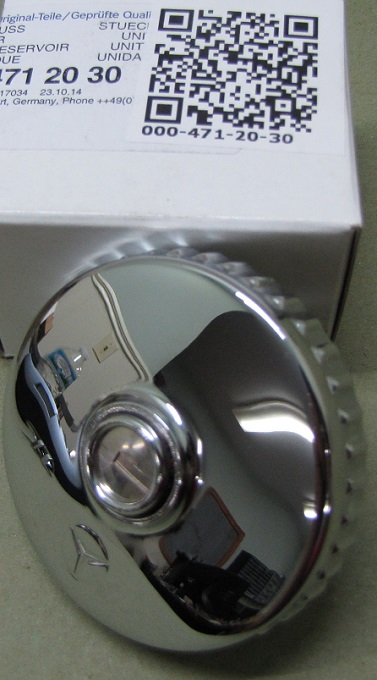

000-471-20-30 Cap, Gas, Locking, Chrome 408.40

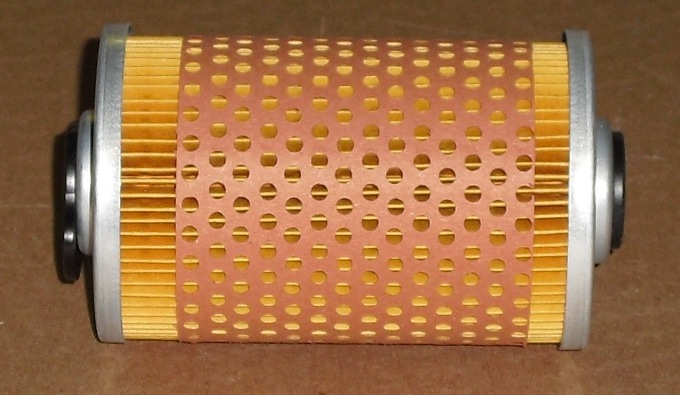

000-477-64-15 Filter, Fuel 9.75
000-492-02-43 Bracket, Exhaust 15.65
000-492-03-43 Hanger Kit, Exhaust Rear 6.65
000-492-03-43 Bracket, Exhaust Hanger, Bottom 6.65
001-091-52-01 Pump, Fuel 1320.00
007603-042301 Seal, Exhaust, Front 2.95
073379-008200 Hose, to Tank 34.35
107-492-00-82 Hanger, Exhaust 3.25
107-492-00-82 Hanger Exhaust Ring, Rubber 3.25
108-476-00-26 Hose, Fuel Line to Filter 20.25
108-476-02-26 Hose to Damper at Fuel Injection Pump 31.00
110-300-00-02 Gas Pedal 96.00

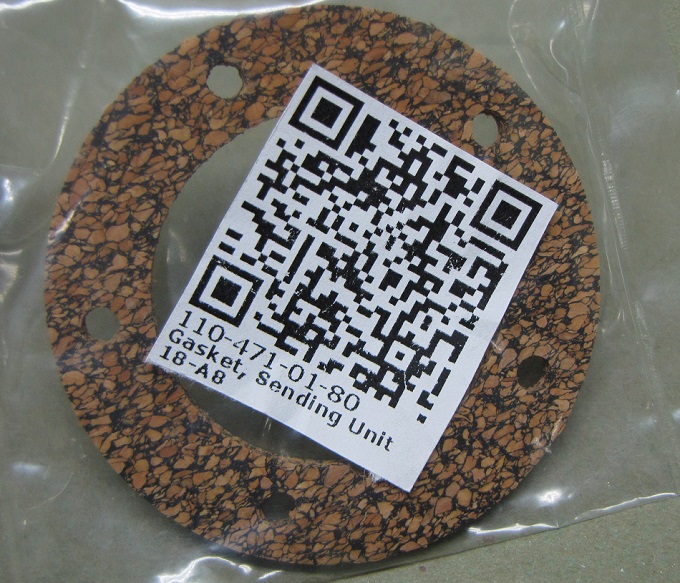

110-471-01-80 Gasket, Unit To 6.20
110-542-12-04 Sending Unit, All 317.65

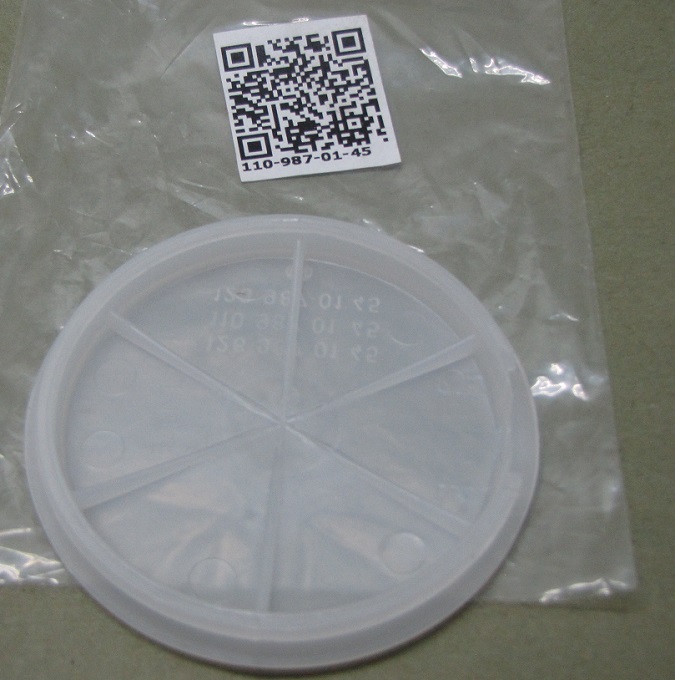

110-987-01-45 Cap, Fuel Sending 5.10
110-995-00-22 Clamp, Fuel Line 4.00
110-997-01-45 Gasket, Plug - Sub to 022-997-06-48 4.20

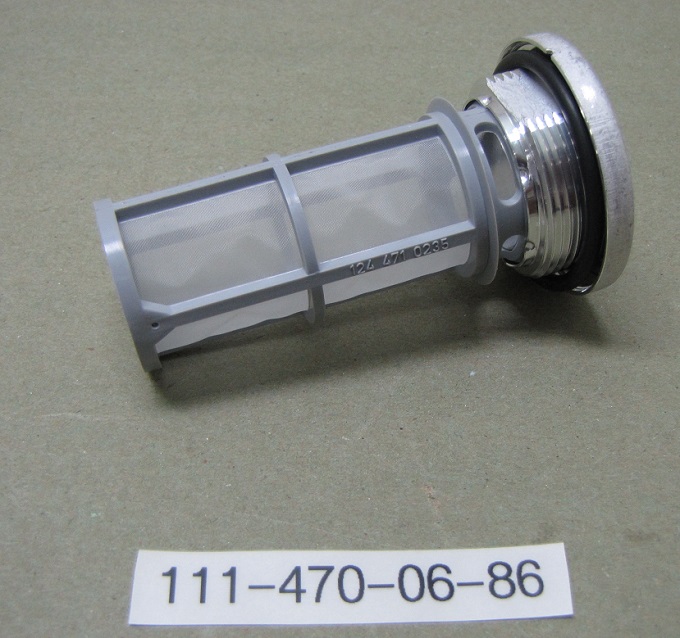

111-470-06-86 Plug, Fuel Tank 25.00
111-476-03-84 Mount, Fuel Lines 18.85
111-476-09-26 Hose, Fuel Pump 52.65
113-476-09-26 Hose, Fuel Pump 45.40
112-476-12-26 Hose, Tank to 20.00
111-476-13-26 Hose, Fuel Inj 230SL 14.49
111-542-11-04 Early Style up to 008954 243.38
113-470-01-64 Line, Fuel Pump to Filter Hose 110.20
113-470-02-64 Line, Fuel Tank to Pump 90.10

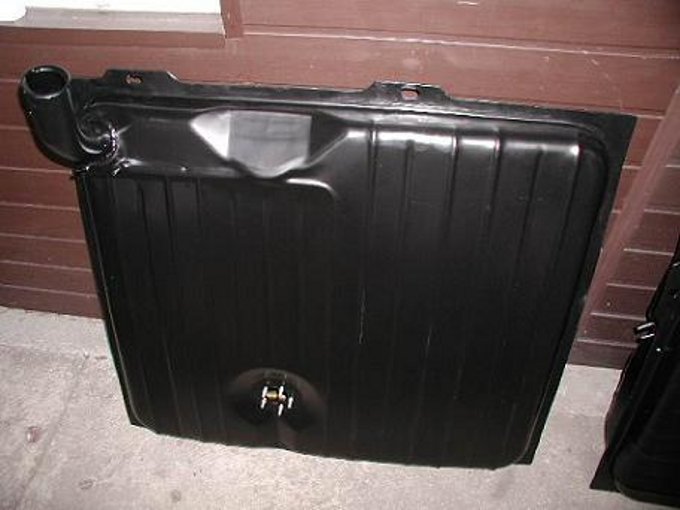

113-470-06-01 Tank, Fuel, 230SL 1350.00
113-470-07-01 Tank, Fuel, 280SL 1270.00
113-470-07-01R Tank, Fuel, 280SL, Repro 700.00
113-490-00-00 Exhaust System, Stainless, Late 1500.00
113-490-00-01 Exhaust System, Stainless, Early 1500.00
113-490-00-22 Pipe, Exhaust, W/Res. 570.00
113-490-00-22R Pipe, Exhaust, W/Res.: Reproduction 570.00
113-490-00-43 Bracket, Exhaust Hanger Top 19.10
113-490-02-19 Pipe, Exhaust, Front, Up To # 013864 388.00
113-490-09-20 Pipe, Exhaust, Front, From # 013865 400.00
113-491-13-01 Muffler, Rear 334.85
113-491-13-01R Muffler, Rear: Reproduction 334.85
113-492-00-82 Hanger Exhaust Ring, Rubber 3.00
113-492-01-43 Bracket, Exhaust Hanger 10.78
113-492-02-14 Extension, Tailpipe 37.25
113-492-03-04 Pipe, Rear Exhaust 53.55
113-492-03-04R Pipe, Rear Exhaust: Reproduction 53.55
115-471-00-79 Seal, Gas Cap 4.75
115-471-02-68 Tank, Vapor, 250SL and 280SL 42.65
116-987-01-40 Bumper, Rear Muffler 2.70
116-988-05-11 Mount, Rubber 5.85
123-997-16-81 Boot 4.00
127-070-07-32 Hose, Fuel Filter Cannister at Injection Pump (230SL) CALL
128-476-07-26 Hose, Fuel Injector Return 14.00
129-997-02-82 Hose, Fuel Filter Cannister at Injector Pump (250, 280SL) 183.32

113Chassis - Engine Upper - Pg. 4
000-010-12-85 Valve Cover Cap CALL
000-542-58-19 Mixture Relay, 4 pole 277.70
000-542-59-19 Mixture Relay, 5 pole 120.00
000-997-46-94 Timing Chain 101.20
0001476-004000 Pin, Rail Guide (Small) CALL
108-050-05-24 Guide, Exhaust Valve (129 and 130 Engine), Std 30.25
108-050-06-24 Guide, Exhaust (129 and 130 Engine), 1st over (.1mm) 30.25
108-050-07-24 Guide, Exhaust (129 and 130 Engine), 2nd over (.2mm) 33.00
108-050-08-24 Guide, Exhaust (129 and 130 Engine), 3rd over (.3mm) CALL
108-050-09-24 Guide, Exhaust (129 and 130 Engine), 4th over (.4mm) CALL
108-053-02-20 Spring, Valve, Outer (230SL) 71.50
110-053-01-20 Spring, Valve, Inner (250SL) 10.45
110-053-01-20 Spring, Valve, 280SL upto 004596/007229 10.45
114-051-05-01 Camshaft (280SL after 004596/007229) 770.00

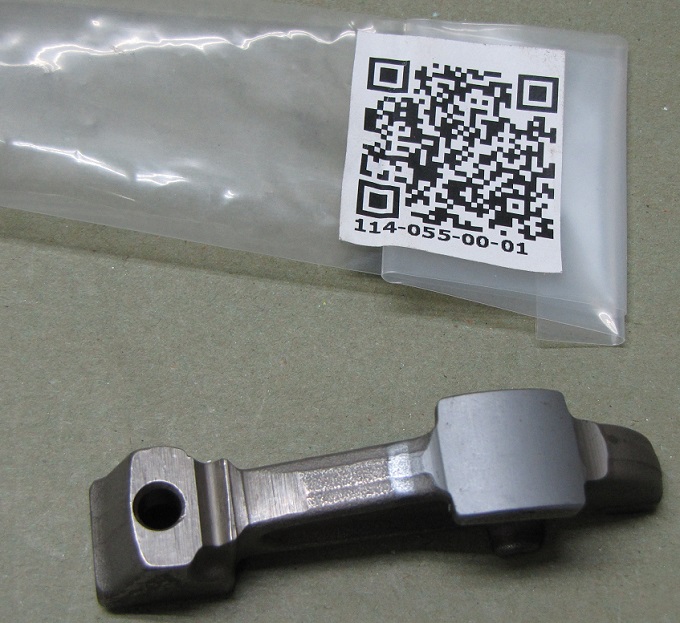

114-055-00-01 Rocker Arm 75.00
115-050-00-27 Valve, Exhaust (129 and 130 Engine) 77.00

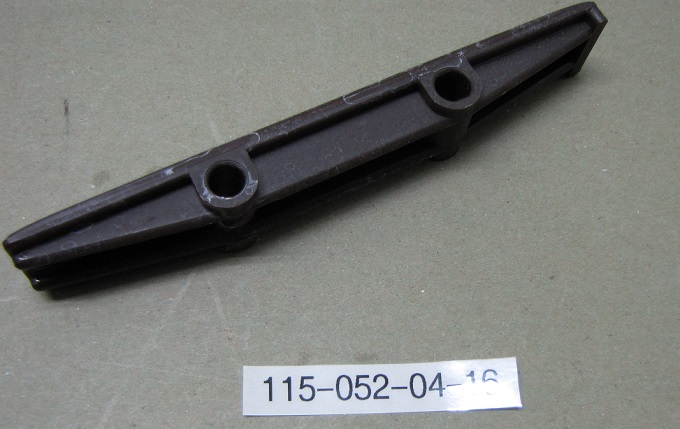

115-052-04-16 Guide, Timing Chain, Lower (Req 2) 82.00
115-052-07-16 Guide, Timing Chain 82.00
121-052-03-01 Gear, Camshaft 40.00
123-050-01-67 Valve Seal Kit (280SL, 250SL after 000617/000466) 115.50
126-158-02-07 Gear, Driver Bushing 297.00
127-016-04-60 Distributor, Water Cup 22.00
127-016-07-60 Distributor, Water Cup (Req 6) 22.00
127-016-08-60 Distributor, Water Cup (Req 3) 10.00
127-050-15-24 Guide, Exhaust Valve (127-981 Engine), 14.018mm 29.04
127-050-16-24 Guide, Exhaust Valve (127-981 Engine), 14.20mm 62.61
127-050-17-24 Guide, Exhaust Valve (127-981 Engine), 14.40mm 35.10
127-052-03-02 Intermediate Gear 300.00
127-586-01-05 Valve Seal Kit (230SL, 250SL up to 000617/000466) 60.90
129-010-16-20 Cylinder Head, 982 Engine CALL
129-010-17-08 Lower Gasket Set, 230/250SL 130.00
129-010-18-20 Upper Gasket Set, 230/250SL 130.00
130-010-02-80 Upper Gasket Set, 280SL up to 004596manual or 007229auto 138.00
130-010-04-80 Upper Gasket Set, 280SL after 004596manual or 007229auto 222.20
130-010-18-21 Cylinder Head, 983 Engine (After 004596) CALL
130-010-26-20 Cylinder Head, 983 Engine (Up to 004596) CALL
130-010-96-08 Lower Gasket Set, 280SL 140.00
130-016-02-21 Gasket, V Cover (129-982 and 130-983) 33.50
130-050-00-11 Tensioner, Timing Chain CALL
130-050-00-24 Guide, Intake Valve, Std 10.11
130-050-01-24 Guide, Intake Valve, 1st over 30.90
130-050-02-24 Guide, Intake Valve, 2nd over 33.00
130-050-03-24 Guide, Intake Valve, 3rd over 31.00
130-050-05-74 Pin, Ball/Rocker Arm (280SL) 132.50
130-053-00-22 Spring, Valve, 280SL after 005496/007229 CALL
130-053-01-01 Valve, Intake (250SL/280SL) 77.00
180-050-04-09 Gear, Tach Drive 169.00
180-050-05-74 Pin, Ball/Rocker Arm 52.65
180-051-08-35 Camshaft (280SL up to 004596man or 007229auto) 600.00
180-051-84-01 Camshaft 745.00

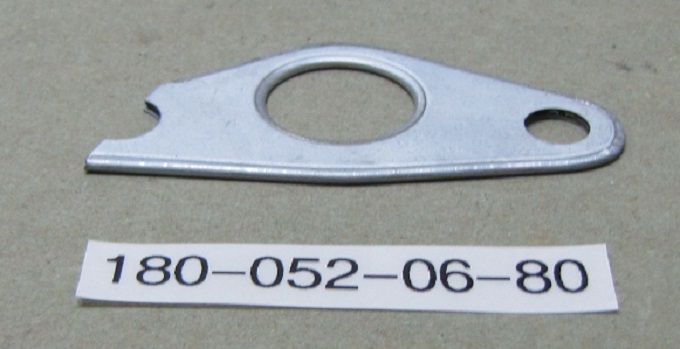

180-052-06-80 Gasket, Tensioner 21.80
180-053-04-01 Valve, Intake (230SL) 83.53
180-053-10-22 Spring, Valve, Inner 79.20
180-053-11-05 Valve, Exhaust (127-981 Engine) 77.00
180-997-02-40 Gasket, Valve Cover Cap 3.20
615-052-02-03 Gear, Crankshaft 80.00
621-050-04-09 Intermediate Gear (Req 2) 264.00

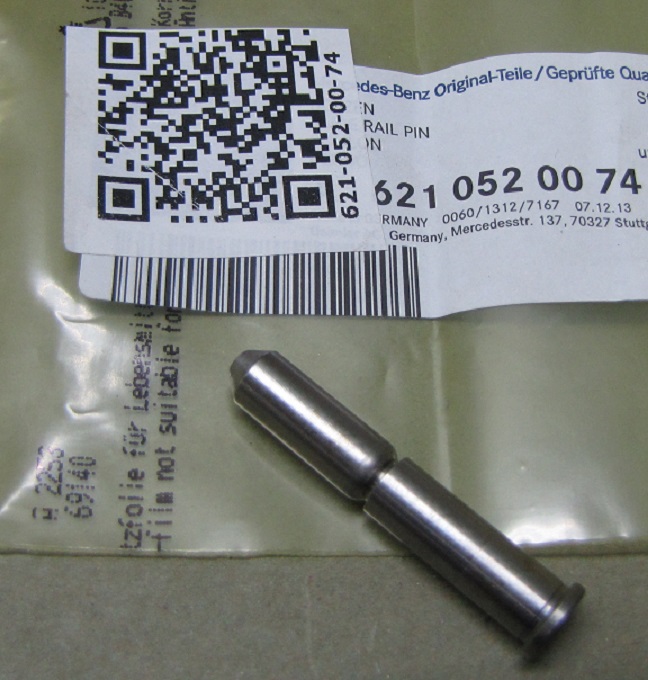

621-052-00-74 Pin, Chain Guide 13.75

113Chassis - Engine Lower - Pg. 5
1845 Rings, 86.5mm CALL
1845.2 Rings, 87mm CALL
1845.4 Rings, 87.5mm CALL
000-997-69-41 Seal, Rear Main (230SL) CALL
000000-001145 Bolt to Cylinder Cover 2.68
000125-006449 Washer, Bolt to Cylinder Cover 1.60
001-997-12-41 Seal, Rear Main (280SL) 10.00
003-997-93-47 Seal, Front Crank 30.30
007603-026301 Gasket, Oil Plug CALL
108-010-02-13 Oil Pan, Lower, 230SL up to 025502/002044) CALL
108-010-03-13 Oil Pan, Lower, 280SL up to 029438 CALL
108-030-00-40 250SL Main Bearings, Std 332.20
108-030-00-60 250SL Rod Bearings, Std 332.20
108-030-01-40 250SL Main Bearings, .25mm over 332.20
108-030-01-60 250SL Rod Bearings, .25mm over 332.20
108-030-02-40 250SL Main Bearings, .50mm over 323.85
108-030-02-60 250SL Rod Bearings, .50mm over 332.20
108-030-03-40 250SL Main Bearings, .75mm over 332.20
108-030-03-60 250SL Rod Bearings, .75mm over 332.20
108-030-04-40 250SL Main Bearings, 1.00mm over 316.00
108-030-04-60 250SL Rod Bearings, 1.00mm over 316.00
108-031-02-51 Spacer Sleave 25.84
108-031-11-07 Counter Weight, 250SL CALL
108-038-01-72 Nut, Connecting Rod, 280SL 9.35
108-038-02-71 Screw, Connection Rod (250SL/280SL) 82.50
108-038-02-72 Nut, Connecting Rod, (230SL after 010833)/250SL CALL
108-038-03-50 Bushing, Rod, 250SL 49.50
110-015-01-21 Gasket, Cover 4.75
114-030-00-60 280SL Rod Bearings, Std 277.70
114-030-01-60 280SL Rod Bearings, .25mm over 332.20
114-030-02-60 280SL Rod Bearings, .50mm over 332.20
114-030-03-60 280SL Rod Bearings, .75mm over 332.20
114-030-04-60 280SL Rod Bearings, 1.00mm over 332.20
120-223-04-12 Mount, Transmission 108.90
121-038-03-71 Screw, Connecting Rod (230SL after 001264/000110) 52.60
123-010-00-28 Oil Pan, Lower, 230SL after 025502/002044) 90.75
123-010-00-28 Oil Pan, Lower, 280SL from 029438 90.75
127-030-00-60 230SL Rod Bearings, Std 346.70
127-030-01-60 230SL Rod Bearings, .25mm over 332.20
127-030-02-60 230SL Rod Bearings, .50mm over 332.20
127-030-03-60 230SL Rod Bearings, .75mm over 316.00
127-030-04-60 230SL Rod Bearings, 1.00mm over 316.00
127-030-83-17 Piston, 4 Ring, 24mm Wrist Pin (82mm) 230SL 363.00
127-030-85-17 Piston, 4 Ring, 24mm Wrist Pin (82.5mm) 230SL 330.33
127-030-86-17 Piston, 4 Ring, 24mm Wrist Pin (83mm) 230SL 337.00
127-031-10-07 Counter Weight, 230SL after 013546/005119 CALL
127-038-00-50 Bushing, Rod, 230SL 60.50
130-030-00-40 280SL Main Bearings, Std 302.00
130-030-01-40 280SL Main Bearings, .25mm over 332.20
130-030-02-40 280SL Main Bearings, .50mm over 332.20
130-030-03-40 280SL Main Bearings, .75mm over 332.20
130-030-04-40 280SL Main Bearings, 1.00mm over 316.00
130-030-89-17 Piston, 4 Ring, (86.50mm) 280SL 332.14
130-030-90-17 Piston, 4 Ring, (87mm) 280SL 336.60
130-030-91-17 Piston, 4 Ring, (87.50mm) 280SL 330.00
130-030-95-17 Piston, 3 Ring, (86.50mm) 280SL 319.45
130-030-96-17 Piston, 3 Ring, (87mm) 280SL CALL
130-030-97-17 Piston, 3 Ring, (87.50mm) 280SL 374.00
130-038-01-50 Bushing, Rod, 280SL 26.32
130-997-00-32 Screw Plug 7.30
180-015-08-05 Cover, Cylinder 28.15
180-030-00-40 230SL Main Bearings, Std 285.00
180-030-01-40 230SL Main Bearings, .25mm over 360.94
180-030-02-40 230SL Main Bearings, .50mm over 332.20
180-030-03-40 230SL Main Bearings, .75mm over 332.20
180-030-71-48 Piston, 3 Ring, 25mm Wrist Pin (83mm) 230SL CALL
180-030-73-48 Piston, 3 Ring, 25mm Wrist Pin (82.5mm) 230SL CALL
180-030-75-48 Piston, 3 Ring, 25mm Wrist Pin (82mm) 230SL CALL
180-031-13-07 Counter Weight, 230SL up to 013546/005119 CALL
180-032-06-05 Gear, Flywheel Ring 176.06
180-223-09-12 Mount, Motor 136.15
182-038-00-72 Nut, Connecting Rod, (230SL up to 010833) 14.70
186-038-04-71 Screw, Connecting Rod (230SL up to 001264/000110) CALL
189-014-05-22 Gasket, Oil Pan (230SL, 250SL up to 001175/001025) 38.12
617-014-01-80 Gasket, Oil Pan (Late 250SL, 280SL) 14.00

113Chassis - Heating and Cooling - Pg. 6
007603-008105 Washer (requires 4) 1.20
000-501-00-15 Cap, Pressure Radiator or Tank 61.00
000-833-14-40 Lever, Heater, Green 73.10
000-833-12-40 Lever, Heater, Red 32.20
000-833-13-40 Lever, Heater, Blue 32.20
000-835-13-02 Heater Blower Motor 265.10
000-835-41-98 O-ring, Water 2.85
000-883-12-40 Lever, Heater, Red CALL
000-883-13-40 Lever, Heater, Blue CALL
000-988-06-72 Casing, Outer Cable For Heater 400mm (Requires 4) 4.60
002-200-04-22 Clutch, Fan 336.88
004-997-08-92 250SL Fan and Alternator 930mm Belt 19.97
005-997-83-92 230SL Fan and Alternator 875mm Belt 19.10
006-997-02-92 250SL Fan and Alternator 910mm Belt 7.45
006-997-09-92 Power Steering Belt, All 28.90
007-997-78-92 280SL Fan and Alternator 900mm Belt 30.50
015-997-23-48 O-ring, Water Valve 2.23
108-831-02-94 Hose, Return, 250SL and 280SL. Up to Chassis # 011947 33.00
108-831-05-94 Hose, Heater 89.85
100-200-07-15 Thermostat - 79deg Cent. 36.60
110-200-05-15 Thermostat, 87d Cent 26.60
110-200-09-20 Water Pump 280SL (long 4 in) 145.00
110-200-10-20 Water Pump, 250SL and 280SL (short 2 in, early) 233.20
110-200-20-20 Water Pump, 250SL and 280SL (short 2 in, early) 123.20
110-201-00-80 Gasket, Water Pump 2.12
110-820-15-92 Blower Switch Knob 71.69
110-997-00-81R Plug, Heater Access 11.43
111-821-08-51 Blower Motor Switch 353.95
111-831-00-94 Hose, Return Line 230SL, Different Sized 34.50
113-501-04-82 Upper Hose 39.95
113-501-05-82 Hose, Radiator, Lower, Up To # 005980 89.85
113-501-06-82 Hose, Radiator, Lower, From # 005981 94.38
113-501-09-82 Hose, Tank Outlet: 250-280SL - Curved. 230SL - Straight 18mm Hose 23.60
113-501-10-82 Hose, Radiator, Lower, 250SL and 280SL 49.05
113-502-00-30 Spacer, Radiator Mount, Rubber 5.80
113-830-01-19 Defroster Duct, Left 279.50
113-830-02-19 Defroster Duct, Right 279.50
113-830-01-42 Air Intake Flap, Left 136.15
113-830-02-42 Air Intake Flap, Right 136.15
113-831-00-88 CALL
113-831-07-42 Flap Seal, Left 30.95
113-831-08-42 Flap Seal, Right 30.95
113-831-08-94 Heater Hose, 230SL (1M), 250SL, and 280SL (1.5M) To Chassis #011753 47.45
113-831-09-84 Heater Hose, 280SL from Chassis #011754 CALL
113-831-10-98 Seal, Fresh Air Vent 156.10
113-833-00-40 Lever, Fresh Air (Requires 2) 7.80
113-833-02-31 Wire, 485mm Long For Heater (Requires 4) 13.43
113-997-00-81 Grommet, Core Return Line. (Also in Grommet Kit) 1.50
113-997-01-81 Grommet, Core Feed Line. (Also in Grommet Kit) 9.10
115-200-12-20 Water Pump, 230SL (short 2 in, early) 110.00
121-203-00-82 Hose, Therm. Hsg. Bottom, 230SL 17.25
127-203-00-82 Hose, Therm. Hsg. Bottom, 250-280SL 14.96
180-200-04-58 Water Line Tube 29.00
180-203-08-80 Gasket, Therm Hsg. To Head 2.08
180-203-09-80 Gasket, Water Pump to Block 2.03
181-203-09-80 Gasket, Housing CALL
900271-008019 Hose, Rad Overflow 30.35
915036-005100 Bolt, Hollow (Requires 2) 4.50

113Chassis - Suspension, Front and Springs - Pg. 7
000-330-04-85 Boot Kit 8.00
000-338-50-10 Ball Joint, Left Hand Thread 25.00
000-338-52-10 Ball Joint, Right Hand Thread 25.00
000-463-51-32 Steering Shock 52.05
000-981-58-05 Bearing, Inner 21.50
000-981-59-05 Bearing, Outer 28.50
003-997-93-46 Seal, Front 12.00
107-330-01-03 Tie Rod Assembly 30.75
108-325-01-85 Mount, Rear Spring (30mm) 44.50
108-325-02-85 Mount, Rear Spring (24mm) 40.70
108-325-03-85 Mount, Rear Spring (18mm) 77.00
108-330-02-75 Mount Kit 148.50
110-320-00-47 Bolt Kit 138.30
110-323-04-85 Mount, From # 005165 24.50
110-325-01-85 Mount, Lower 16.35
110-325-07-15 Retainer 208.35
110-329-01-85 Mount, Comp. Spring 14.20
110-330-02-18 Repair Kit, Control Arm, Upper, Outer 46.45
110-330-03-18 Repair Kit, Control Arm, Lower, Outer 80.00
110-460-02-05 Drag Link 100.00
110-586-01-33 Repair Kit, Control Arm, Upper, Inner 399.30
110-586-02-33 Repair Kit, Control Arm, Lower, Inner 457.40
111-322-03-85 Mount, Top 108.90
111-330-00-51 Repair Kit 51.25
111-330-03-30 Rod, Support 65.10
111-330-29-07 Control Arm, Lower, Left 1740.00
111-330-30-07 Control Arm, Lower, Right 187.22
111-330-38-20 Spindle, Left 442.18
111-330-39-20 Spindle, Right 442.18
111-333-02-65 Bumper, Lower Control Arm 11.40
111-333-04-48 Bushing, Control Arm 34.50
111-333-05-48 Bushing, Control Arm 34.50
111-334-00-64 Plate, Seal Puller 183.35
111-460-00-50 Repair Kit, Idler Arm, 230SL 259.55
111-460-13-19 Arm, Idler 387.75
111-463-00-60 Seal, Idler Arm 40.00
111-586-00-33 Repair Kit, King Pin 247.50
112-330-31-07 Control Arm Upper 760.00
112-333-01-65 Bumper, Upper 14.65
112-334-05-01 Hub, Front 740.00
113-320-00-30 Shocks, Bilstein Gas, Front 327.95
113-320-00-31 Shocks, Bilstein Gas, Rear 135.30
113-321-04-04 Spring, Front 282.56
113-323-01-30 Shocks, Monroe Gas, Front 66.44
113-323-01-85 Mount, Up to # 005164 25.05
113-324-04-04 Spring, Rear 321.69
113-326-01-31 Shocks, Monroe Gas, Rear 66.44
113-329-03-01 Spring, Compensating 275.90
115-334-03-15 Washer 1.87
120-333-02-48 Bushing, Control Arm 28.88
120-333-03-48 Bushing, Control Arm 25.41
120-334-07-72 Nut 54.45
120-990-13-20 Bolt, Lock Nut 41.75
126-460-08-19 Repair Kit, Idler Arm, 450SL 47.95

113Chassis - Clutch, Trans, Linkage - Pg.8
000-250-96-04 Clutch Pressure Plate, New, 230-250SL 360.00
000-250-05-15 Bearing Release with hub, 280SL Only 154.25
000-295-08-35 Hose Clutch 91.00
000-295-03-35 Slave Cylinder Hose, 230SL 102.10
000-295-19-07 Cylinder, Clutch Slave, 230SL-250SL 189.00
000-250-05-15 Clutch Release With Sleeze (280SL) 154.25
000-250-96-04 Clutch Pressure Plate, New (230SL) 360.00
000-295-42-07 Cylinder, Clutch Slave, 280SL 224.40
000-545-12-06 Switch, Reverse Lights 310.15
000-586-20-29 Repair Kit, Cylinder - 280SL 27.25
000-981-43-25 Clutch Release Without Sleave (250SL) 128.85
001-250-42-04 Clutch Pressure Plate, New, (250SL, 280SL) 253.00
001-545-87-24 Switch, Backup 314.00
001-981-71-25 Bearing, Countershaft, Front and Rear 66.00
001-990-01-51 Hex Shift Rod At Trans 12.65
002-981-06-25 Bearing, Main Shaft , Front and Rear 49.71
010-250-26-03 Clutch Plate, New 145.20
110-250-00-15 Clutch Bearing with Sleave 230-250SL 360.95
111-250-01-15 Clutch Release With Sleave (230SL, 250SL) 240.00
111-250-02-15 Clutch Release Without Sleeve (230SL) $
111-267-00-74 Bolt, Shift Rod At Trans. 38.50
111-267-00-83 Bushing, Rod At Trans. (Requires 2) 10.55
111-267-00-86 Bushing, Shift Lever 12.75
111-268-04-97 Boot, Shift 113 WST 16.35
111-268-06-97 Boot, Bottom, Up to Chassis # 014258 230SL Only 12.35
111-268-07-97 Boot, Bottom, From Chassis # 014259 and 250SL, 280SL 9.65
111-268-08-42 Knob, Ivory 43.56
111-268-09-42 Knob, Shift-Push On, Black 49.50
111-990-10-01 Screw, Hex Head, Shift Rod at Trans 9.82
111-992-02-10 Bushing, Shift Support Lever, 230SL Only 15.00
111-992-03-10 Bushing, Shift Support Lever, All others (Requires 2) 14.00
111-992-05-10 Bushing - Support Rod, 2 Required, All others 41.75
111-993-11-10 Spring, Clutch Release 5.10
112-268-00-50 Bushing, Auto Shift CALL
112-268-00-50 Bushing, Auto Shift CALL
112-268-01-50 Bushing at End of Rod 5.30
113-260-00-28 Shift Gate, All 113 WAT 21.70
113-260-00-51 Cable, Shift 105.30
113-260-08-89 Rod, Shifter Support, 2 Required, From # 014258 303.60
113-262-00-34 Ring, Trans Synchro 34.40
113-267-00-10 Shift Knob Black 113 62.00
113-267-00-10B Shift Knob Black 113 57.12
113-267-02-96 Boot 75.45
113-542-05-07 Cable, Speedometer, Standard 53.52
113-542-07-07 Cable, Tachometer 53.52
113-542-09-07 Cable, Speedometer, Automatic 57.30
113-586-00-26 Gasket and Seal Set, 230SL and 250SL 135.00
113-586-01-26 Gasket and Seal Set, 280SL 103.50
120-254-00-97 Boot, Clutch T/O Lever 8.75
186-262-01-73 Lock, Rear Nut 6.25
186-262-02-26 Nut, Rear 35.20
198-268-01-50 Bushing, Lever Bottom (Requires 4) 8.00

113Chassis - Brake Parts FIG #1 - Pg. 9
000-428-03-73 Retainer, Hose 4.00
000-428-30-35 Hose, 230SL, Left 16.00
000-428-31-35 Hose, Right, Rear 16.75
000-428-36-24 Distributor, Front or Rear 93.90
000-430-55-30 Booster 438.90
000-431-36-12 Regulator, Brake 61.75
000-431-43-34 Screen 6.75
000-431-45-02 Reservoir, 230SL 210.00
000-431-54-33 Cap, Reservoir 7.65
000-997-29-40 Gasket 2.80
000-997-29-40 Gasket 2.80
001-430-63-01 Master Cylinder, 230SL 241.35
001-430-89-01 Master Cylinder, 250SL and 280SL Early 368.00
001-431-32-02 Reservoir, To Master Cylinder CALL
002-430-28-01 Master Cylinder, 280SL Late 198.00
004-997-32-45 O-ring, Cylinder to Booster 4.60
108-427-06-96 Boot, Cable 35.40
110-427-01-13 Lever 23.60
110-428-00-73 Lock Plate, Hose to Line 7.64
113-420-00-85 Cable, Front 130.68
113-420-07-85 Left Rear Cable 110.00
113-420-08-85 Right Rear Cable 110.00
113-420-02-85 Right Rear Cable, 230SL (Must use adaptor 115-420-11-89) 122.90
113-420-01-85 Left Rear Cable, 230SL (Must use adaptor 115-420-11-89) 122.90
113-427-00-72 Nut, Adjustment 151.70
115-420-11-89 Adaptor to 230SL Rear Brake Cable 9.10
123-420-58-28 Line, Left, Front 20.00
123-420-58-28 Line, Cylinder to Distributor 20.00
123-420-59-28 Line, Right, Rear 39.05
123-420-60-28 Line, Center 39.05
123-420-72-28 Line, Right, Front 45.40
123-420-81-28 Line, Center, All 53.55
123-428-05-35 Hose, Left and Right, Front, All 18.50
198-427-00-96 Boot 39.60
198-993-02-10 Spring 51.70
912001-016000 Clip, Cable, Retainer 1.40

113Chassis - Brake Parts FIG #2 - Pg. 10
000-420-08-55 Bleeder Screw 11.55
000-420-16-55 Bleeder Screw 10.45
000-420-46-83 Caliper, Rear 250 and 280SL, Left 495.00
000-420-47-83 Caliper, Rear 250 and 280 SL, Right 495.00
000-421-08-87 Bleeder Screw Cap 2.75
000-421-71-87 Cap, Protective 2.10
000-423-21-93 Spring, Up to Chassis # 000816 1.15
000-423-21-93 Spring, Up to Chassis # 000816 1.15
000-586-02-42 Pin Set, Pad Mounting 13.50
000-586-03-42 Pin Set, Front Disc Pad Mount 13.50
001-420-82-20 Pad Set (Textar): 250 and 280SL Rear Disc Brakes 129.40
001-420-77-20 Pad Set, Front 34.25
001-421-81-98 Caliper, Front All, Left 307.50
001-421-82-98 Caliper, Front All, Right 285.00
002-420-49-18 Cylinder, Rear 70.15
108-420-00-28 Line, To Calipers 250 and 280SL, Left 36.30
108-420-01-28 Line, To Calipers 250 and 280SL, Right 35.40
108-420-02-86 Lock Plate, Rear Disc Brakes 50.85
108-423-00-92 Spring, From Chassis # 000817 3.48
108-423-01-92 Spring, Return, 250 and 280SL - Sub To 901-993-13-10 2.80
108-423-07-92 Spring, From Chassis # 000817 25.78
110-401-01-70 Bolt, Lug. Wheel Attaching, Disc Or Drum Brakes CALL
110-420-07-90 Case, Cable Pulley 167.00
110-420-13-42 Lever, Emergency Brace, Actuating, Left 212.00
110-420-20-20 Shoe Set (4 Pieces) 150.00
110-421-01-12 Disc, Front, 230SL 70.00
110-423-03-77 Washer, Cupped 17.05
110-990-05-40 Washer, Flat Back Plate 3.40
110-993-04-01 Spring 7.10
110-993-12-10 Spring, Shoe Return (230SL) 10.75
110-993-12-40 Spring, Return CALL
111-420-62-28 Line, To Calipers 230SL, Left 83.50
111-420-63-28 Line, To Calipers 230SL, Right 83.50
113-420-00-05 Drum, Rear, 230SL 1031.06
115-420-11-89 Adaptor to be used with 111-420-00-79 Pulley 9.10
115-421-11-12 Disc, Front, 250 and 280SL 46.05
115-423-02-73 Lock Plate, Rear Disc Brakes 5.30
115-994-07-32 Lock Plate, Front 7.67
116-423-00-50 Sleeve, Adjuster 5.75
120-423-01-56 Washer 17.60
120-990-06-40 Washer 1.85
120-990-07-40 Washer 16.50
120-993-06-01 Spring 7.50
123-420-00-73 Screw, Shoe Adjuster 8.25
126-420-01-20 Shoe, Emergency Brake. Uses 2 47.50
126-423-00-12 Disc, Rear, 250 and 280SL 41.16
136-423-00-92 Spring, Return 8.90
183-423-06-74 Pin 19.64
621-990-03-40 Washer 1.65
001-420-06-20 Pad Set (Ate): 250 and 280SL Rear Disc Brakes 38.50

113Chassis - Rear Axle Assembly - Pg. 11
000-980-05-02 Outer Bearing CALL
000-980-10-02 Inner Bearing 96.20
001-981-15-25 Bearing, Axle, Left 36.09
001-997-34-46 Seal, Axle, Inner 33.60
001-997-47-46 Seal, Axle, Outer 15.00
002-981-23-01 Bearing, Rear Case CALL
002-988-10-78 Staple 5.00
003-981-23-25 Bearing, Drive Shaft 32.00
004-997-25-46 Seal Ring 26.35
108-410-01-15 Flex Joint Kit 225.00
108-413-01-12 Yoke, Centering Cross 20.90
110-320-05-44 Bumper, Rear Axle 100.00
110-350-06-75 Mount, Axle to Body 144.00
110-350-12-75 Bushing, Axle Pivot 400.00
110-352-10-65 Mount, Arm to Frame 16.70
110-352-18-65 Bumper, Rear Axle 113 6.00
110-357-03-91 Rear Axle Boot, Split 68.70
110-357-04-91 Rear Axle Boot, Solid 56.26
110-357-05-91 Clamp Kit With Staples 20.60
110-423-00-79 Gasket, Backing Plate 18.00
111-350-00-68 Repair Kit, Axle (2). Includes All 6 pieces Above. 77.40
111-350-01-66 Grooved Nut 37.25
111-351-04-44 Mount, Rod 9.00
111-351-04-48 Mount, Rod To Axle, Rubber 33.90
111-352-01-73 Lock, Arm to Axle 8.90
111-352-18-65 Mount, Rear Axle, Rubber, Takes 4 CALL
111-410-00-31 U-Joint, Drive Shaft 39.35
111-410-01-30 Yoke, Centering Cross 194.25
111-994-02-44 Lock 9.10
113-351-00-91 Boot, Axle to Side at Diff. 11.75
153-357-00-26 Nut, Axle Bearing 17.55
180-351-00-74 Pin, Tappers 105.29
180-351-01-50 Bushing, Axle Pivot 49.05
180-351-09-86 O-ring Seal 6.20
180-411-06-15 Flex Joint 84.15
180-994-01-12 Lock, Axle Pin Bolt 4.75
180-997-04-30 Bolt, Axle Support 24.55
183-353-03-73 Washer, Lock 18.60

113Chassis - Tuneup Parts - Pg. 12
000-094-12-55 Clamp, Air Cleaner 3.00
000-094-20-79 Seal, Early 230SL 41.75
000-094-20-79 Seal, Air Cleaner Halves 41.75
000-094-58-04 Air Filter, Late 230-280SL 23.50
000-156-54-01 Condenser, Aluminum 68.00
000-156-81-01 Condenser 8.70
000-158-07-90 Points Set, Distributor #Zvkt-8 36.00
000-158-20-31 Rotor 25.00
000-158-20-90 Points, 2 Piece, Distributor # 0231185009 38.50
000-158-25-02 Cap, Alignment Knotch In Cap, Cast Iron Distributor 72.00
000-158-27-31 Rotor, Distributor (230SL) 31.00
000-158-27-90 Points, Transistorised Ignition, 280SL 17.50
000-158-28-03 Coil, with Transistor Ignition (Blue) 84.50
000-158-35-02 Cap, Distributor, Aluminum Style Distributor 29.50
000-158-39-90 Points, Aluminum Distributor 48.50
000-158-54-02 Distributor Cap 115.00
000-158-49-03 Coil, no Transistor Ignition (Red) 68.50
000-180-00-09 Filter, Oil, All 8.90
000-184-17-80 Seal, Oil Filter, Bottom 9.30
000-184-32-80 Seal, Oil Filter 2.40
000-184-33-80 Seal, Oil Filter, Upper 4.20
000-447-64-15 Filter, Fuel All 113 CALL
000-542-58-19 Mixture Relay (4 Pole) 277.70
000-542-59-19 Mixture Relay (5 Pole) 120.00
000-542-68-19 Wiper Relay 94.40
000-997-22-81 Grommet, Ignition Wires, 230SL 1.60
001-156-05-01 Condenser, late 280SL (non-Aluminum) 92.56
001-545-16-24 Switch, Cold Start 282.00
002-154-74-06 Voltage Regulator 30.10
108-150-00-18 Wire Set, Ignition 230SL 67.65
121-094-02-91 Boot Breather Off Cylinder Head Cover 5.30
123-987-09-40 Buffer, Mount, Rear Muffler 2.80
127-094-01-82 Hose, Air Cleaner, 230SL (230mm) 134.31
129-094-00-82 Hose, Air Cleaner, 250SL (205mm) CALL
129-094-01-82 Hose, Air Cleaner, 250SL (100mm) 130.68
130-094-00-82 Hose, Air Cleaner, 280SL (140mm) 152.50
130-150-00-13 Wire Set, Ignition 250-280SL 67.65
189-094-00-82 Hose, Air Cleaner, 230SL (162mm) 156.10
602-900-00 Bracket, Condenser 25.75
602-954-00 Clip, Distributor Cap 27.85
W7-DC Spark Plug, Standard 4.95
WR-7DP Spark Plug, Platinum 2.22
Points Click to select your distributor number for ordering CALL
Condenser Click to select your distributor number for ordering CALL
Distributor Cap Click to select your distributor number for ordering CALL
Rotor Click to select your distributor number for ordering CALL

113Chassis - Body Chrome and Emblems - Pg. 13
000-586-12-28 Clip Kit - 24 Set CALL
000-987-09-15 Plug, Moulding Clip 3.00
000-987-25-60 Seal, Guards, Bumper 16.35
001-987-21-25 Insert, Rubber, Top Mouldings 17.65
002-988-12-78 Clip, Side Moulding 6.20
110-678-04-37 Clip, Moulding 15.80
110-810-09-16 Mirror, 230SL, Left 124.65
110-810-10-16 Mirror, 230SL, Right 111.00
111-758-50-02 Handle, Trunk 445.00
113-401-04-45 Trim Ring, 230-250SL 340.00
113-401-06-28 Clip, Trim Ring Style Only, 230-250SL and Early 280SL 5.99
113-671-01-30 Moulding, Windshield, Left 384.80
113-671-02-30 Moulding, Windshield, Right 384.80
113-686-01-36R Sill Trim, Outer, Left, Repro 183.00
113-686-02-36R Sill Trim, Outer, Right, Repro 183.00
113-686-03-36R Sill Trim, Inner, Left, Repro 216.00
113-686-04-36R Sill Trim, Inner, Right, Repro 216.00
113-693-03-35 H/T Lock Cap, Left 400.00
113-693-04-35 H/T Lock Cap, Right 400.00
113-698-00-81 Moulding Tail Panel Lower 261.95
113-698-01-80R Moulding, Fender, Lower, Left Repro 97.92
113-698-01-84 Moulding, Tail, Left 148.85
113-698-02-80R Moulding, Fender, Lower, Right, Repro 97.92
113-698-02-84 Moulding, Tail, Right 120.00
113-698-05-80 Moulding, Fender, Upper, Left 400.00
113-698-06-80 Moulding, Fender, Upper, Right 400.00
113-698-05-80R Reproduction Moulding, Fender, Upper, Left 132.00
113-698-06-80R Reproduction Moulding, Fender, Upper, Right 132.00
113-698-07-80 Moulding, 1/4, Upper, Left 475.00
113-698-08-80 Moulding, 1/4, Upper, Right 470.00
113-698-07-80R Reproduction Moulding, 1/4, Upper, Left 132.00
113-698-08-80R Reproduction Moulding, 1/4, Upper, Right 132.00
113-698-09-80 Moulding, 1/4, Lower, Left 486.00
113-698-09-80R Reproduction Moulding, 1/4, Lower, Left 144.00
113-698-10-80 Moulding, 1/4, Lower, Right 486.00
113-698-10-80R Reproduction Moulding, 1/4, Lower, Right 144.00
113-698-11-80R Moulding, 1/4, Lower, Left, Repro 120.00
113-698-12-80R Moulding, 1/4, Lower, Right, Repro 84.00
113-728-01-30 Moulding, Door Top, Left 446.00
113-728-01-31 Moulding, Dr, Upper, Left 800.00
113-728-01-31R Reproduction Moulding, Dr, Upper, Left 288.00
113-728-01-35R Moulding, Dr, Lower, Left, Repro 200.00
113-728-02-30 Moulding, Door Top, Right CALL
113-728-02-31 Moulding, Dr, Upper, Right 800.00
113-728-02-31R Reproduction Moulding, Dr, Upper, Right 288.00
113-728-02-35R Moulding, Dr, Lower, Right, Repro 224.00
113-758-00-58 Star, Trunk 111.75
113-766-03-01 Handle, Door with Keys, Left 306.50
113-766-04-01 Handle, Door with Keys, Right 336.60
113-810-29-16 Mirror Assembly, 280SL, Left 144.15
113-810-30-16 Mirror Assembly, 280SL, Right 151.65
113-817-00-16 Emblem, Hood 230-280SL 412.00
113-817-03-15 Emblem, Trunk (230SL) 201.47
113-817-04-15 Emblem, Trunk (280SL) 201.47
113-817-05-15 Emblem, Trunk (250SL) - Not available CALL
113-880-00-23 Grille Assembly 4940.00
113-880-00-55R Rubber Guard Only: Reproduction 69.00
113-880-01-55 Guard, Bumper, Front, Left 1520.00
113-880-01-70R Bumper End Front Reproduction Chromed, Left 250.00
113-880-01-86 Grille Star and Barrel 1265.00
113-880-02-55 Guard, Bumper, Front, Right 1520.00
113-880-02-70R Bumper End Front Reproduction Chromed, Right 500.00
113-880-03-85 Grille Screen, Left 342.00
113-880-04-55 Guard, Rear 1090.00
113-880-04-85 Grille Screen, Right 366.00
113-880-03-71R Rear Bumper End, Left - Repro 266.50
113-880-04-71R Rear Bumper End, Right - Repro 533.00
113-880-03-71U Rear Bumper End, Left - Used CALL
113-880-04-71U Rear Bumper End, Right - Used CALL
113-885-00-23 Cover, Bumper Joint 210.40
113-885-00-23R Reproduction Bumper Joint Cover 176.00
113-888-01-21 Grille Wing, Left 472.00
113-888-02-21 Grille Wing, Right 416.00
113-888-02-22 Grille Frame: Original 3020.00
113-888-02-22R Reproduction Grille Frame 719.00
115-401-03-24 Cover, Wheel 413.82
123-401-01-28 Clip, Full Cover Only 4.60
186-401-00-25 Hub Cap, 230-250SL and Early 280SL 460.00
188-400-00-26 Clip, Wheel Cover, 280SL, Hub Cap Only 28.58

113Chassis - Rubber Seals and Gaskets - Pg. 14
000-811-01-65 Retainer, Early 21.15
000-826-57-80 Seal, European Style Headlamp 8.45
000-987-25-60 Seal, Guards to Bumper 16.35
001-987-56-46 Sealer, 750mm 1.79
108-758-01-05 Seal, Trunk Handle 16.55
108-811-00-65 Retainer, Late 18.10
108-811-01-96 Gasket, Late 5.00
110-546-00-85 Grommet, Headlamp Wiring, Right 41.75
110-811-00-96 Gasket, Early 4.80
110-884-00-98 Seal, Front Fender Shield 8.70
113-471-00-81 Filler Neck Grommet 37.25
113-670-00-39 Seal, Hardtop Rear Glass 275.88
113-670-01-39R Seal, Hardtop Side Glass, Left 43.75
113-670-02-39R Seal, Hardtop Side Glass, Right 43.75
113-671-02-20 Seal, Windshield 159.75
113-671-02-20R Seal, Windshield: Reproduction 130.05
113-686-03-80 Sill Rubber Mat, Left 25.70
113-686-04-80 Sill Rubber Mat, Right 25.70
113-693-02-98 Seal, Filler Neck 8.20
113-720-07-78 Seal, Door, Left 260.00
113-720-07-78R Seal, Door, Left: Reproduction 164.50
113-720-08-78 Seal, Door, Right 260.00
113-720-08-78R Seal, Dorr, Right: Reproduction 129.15
113-725-17-66 Seal, Windshield Pillar 36.30
113-725-17-66R Seal, Windshield Pillar: Reproduction 18.54
113-725-19-66 Seal, Hardtop and Soft Top to Door Glass, Left 54.45
113-725-19-66R Seal, Hardtop and Soft Top to Door Glass, Left: Reproduction 31.36
113-725-20-66 Seal, Hardtop and Soft Top to Door Glass, Right 54.45
113-725-20-66R Seal, Hardtop and Soft Top to Door Glass, Right: Reproduction 31.36
113-750-00-77 Seal, Trunk 284.95
113-750-01-77 Seal, Top Cover 308.55
113-758-00-05 Seal, Trunk Lock 23.75
113-766-54-00 Seal Set, Door Handles, 4 Pieces 21.50
113-779-00-22 Seal, Soft Top to Body 34.50
113-790-00-83 Seal, HardTop to Body 430.00
113-795-12-22 Seal, Hardtop and Soft Top to Windshield 87.15
113-795-12-22R Seal, Hardtop and Soft Top to Windshield: Reproduction 50.00
113-826-01-58 Seal, Taillamp, Left 86.65
113-826-02-58 Sealk Taillamp, Right 76.25
113-831-10-98 Seal, Cowl Vent 156.10
113-987-02-40 Bumper, Deck Lid 3.80
113-987-04-40 Bumper, Hood On Lt Plate 2.50
113-997-00-00 Grommet Set, Firewall 230SL 130.00
113-997-00-01 Grommet Set, 280SL (31 Pieces) 140.00
115-471-00-79 Seal, Gas Cap 4.75
115-546-00-85 Grommet, Headlamp Wiring, Left 46.45
115-725-09-65 Felt Seal - Sold individually, but 4 are needed total 23.90
180-811-01-66 Glass, Mirror 28.90
201-988-02-11 Bumper, Hood Adjustable, Rear 5.45

113Chassis - Body Lighting - Pg. 15
000-826-01-41 Lamp, Side Marker, Rear, Left 121.60
000-826-02-41 Lamp, Side Marker, Rear, Right 121.60
000-826-03-41 Lamp, Side Marker, Front. Left 132.50
000-826-04-41 Lamp, Side Marker, Front, Right 132.50
000-826-05-41 Reflector, Side Marker Rear, Left 197.85
000-826-06-41 Reflector, Side Marker Rear, Right 197.85
000-826-07-41 Reflector, Side Marker Front, Left 250.00
000-826-08-41 Reflector, Side Marker Front, Right 197.85
000-826-54-82 Socket, Parking Lamp 436.00
000-826-57-80 Seal, Lens to Base 8.45
000-826-62-80 Seal, Headlamp Assembly to Body 116.20
113-820-00-62 Lamp, License 237.20
113-820-01-64 Socket, Taillamp, Left 174.10
113-820-02-64 Socket, Taillamp, Right 163.85
113-820-04-61 Headlamp Assembly European 1500.00
113-820-12-61 Holder, Bulb with Retainer 1040.00
113-825-01-42 Lamp, Courtesy 41.10
113-826-01-56 RCA Taillamp Colored Lens 250-280SL, Left 208.73
113-826-01-52 RCR Taillamp, Left 1100.00
113-826-01-52R RCR Color of Lens Only, Left 218.00
113-826-01-58 RCR Taillamp Seal, Left 86.65
113-826-01-58R Reproduction RCR Taillamp Colored Lens, Left 37.50
113-826-02-58 RCR Taillamp Colored Lens, Right 76.25
113-826-02-58R Reproduction RCR Taillamp Colored Lens, Right 37.50
113-826-07-58 RCA Taillamp Seal, Left 68.06
113-826-08-58 RCA Taillamp Seal, Right CALL
113-826-01-89 European 1080.00
113-826-02-56 RCA Taillamp Colored Lens 250-280SL, Right 208.00
113-826-02-52 RCR Taillamp 1100.00
113-826-02-52R RCR Color of Lens Only, Right 218.00
113-826-02-90 Lens, Glass. *NOTE: At checkout, include Bosche number on glass. It will be 1-305-630-005 or 1-305-630-067 261.50
113-826-04-89 Rim, with Lens (LE1657 AC) 1360.00
113-826-05-89 Rim, with Lens (LE1657 AN) 1360.00
113-826-06-89 Rim, with Lens (LE1657 AJ) 1360.00
113-826-07-52 Rim, Taillamp, 250-280SL, Left 436.00
113-826-08-52 Rim, Taillamp, 250-281SL, Right 473.75

113Chassis - Mats, Carpet and Upholstry - Pg. 16
113-682-00-17 Cover Under Dash 3-Piece Set *NOTE: At checkout, state whether manual or automatic shifter 208.76
113-830-00-00 Wood Kit 113 4-piece 926.95
113-914-03-14 Seat Bottom Pads, Left 321.75
113-914-04-14 Seat Bottom Pads, Right 321.75
001-113-TEX Vinyl Upholstery Kit 987.29
001-113-LEATHER Leather Upholstery Kit 2311.68
001-113-FS-LTHR Front Seat Cover (4 pc. Leather) 1416.70
001-113-DP-LTHR Door Panel Skin (2 pc. Leather) 719.05
001-113-HR-LTHR Head Rest Pair Covers (2 pc. Leather) 189.80
001-113-LC-LTHR Lid Cover (Leather) 190.70
001-113-FS-TEX Front Seat Covers (4pc. Vinyl) 850.05
001-113-DP-TEX Door Panel Skin (2 pc. Vinyl) 378.70
001-113-HR-TEX Head Rest Pair Covers (2 pc. Vinyl) 113.20
001-113-LC-TEX Lid Cover (Vinyl) 87.35
019-LTHR Leather (Each unit is one square foot. Half a hide or about 30 square feet are required for upholstery) 12.00
113-682-22-28 Insulation Set, Firewall 78.35
113-682-00-01 Pad Under Dash 210.00
113-720-05-70R Door Panel Board 35.00
113-684-07-02 Front Floor Mat, Left 122.84
113-684-08-02 Front Floor Mat, Right 122.84
001-113-SQW Carpet, Square Weave 230SL 935.55
001-113-0250 Carpet Set, Multiloop 803.70
113-620-00-00 Insulation, Floor and Trunk (17pcs) 141.12
113-684-01-04 Trunk Mat 230SL, Left 268.00
113-690-00-35 Trunk Side Cover, Right 100.00
113-690-01-35 Trunk Side Cover, Left 100.00
113-684-06-04 Trunk Mat 230SL, Right 30.60
149-4039-PER Headliner 209.39
ME-678-G1 Canvas Top, Black CALL
ME-678-G2 Canvas Top, Brown CALL
ME-678-G3 Canvas Top, Blue CALL
ME-678-G4 Canvas Top, Tan CALL
113-779-04-36 Spring, Top Frame 33.60
113-779-00-64 Moulding, Top Rear 230SL 311.45
113-795-12-22 Seal, Top to Windshield Frame 87.15
113-795-12-22R Seal, Repro, Top to WS Frame 50.00
107-776-00-17 Handle Set, Conv. Top (Pair) 44.46
113-984-13-31 Bolt, Shoulder, at Pivot Point 6.90


Please note that we cannot guarantee our prices due to fluctuating supply, currency exchange, and cost of materials.
